Salinometer working principle- How to determine water purity ?

Water purity, in terms of the absence of salts, is essential where it is to be used as boiler feed. Pure water has a high resistance to the flow of electricity whereas salt water has a high electrical conductivity. A measure of conductivity, in Siemens, is a measure of purity.

The salinity measuring unit ( shown in Figure ) uses two small cells each containing a platinum and a gunmetal electrode. The liquid sample passes through the two cells and any current flow as a result of conductance is measured. Since conductivity rises with temperature a compensating resistor is incorporated in the measuring circuit.

ships machinery spaces
container ships machinery info
The insulating plunger varies the water flow in order to correct values to 20 degree C for a convenient measuring unit, the microsiemens/cm3 or dionic unit. A de-gassifier should be fitted upstream of this unit to remove dissolved carbon dioxide which will cause errors in measurement.

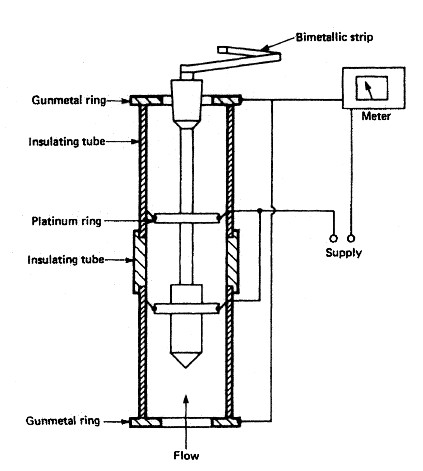

Salinometer

Fig: Salinometer
