Moving Coil Meters for Electrical Measurements of Current & Voltage

Electrical measurements of current or voltage are usually made by a moving coil meter. The meter construction is the same for each but its arrangement in the circuit is different.

A moving coil meter consists of a coil wound on a soft iron cylinder which is pivoted and free to rotate (Figure below). Two hair springs are used, one above and one below, to provide a restraining force and also to conduct the current to the coil. The moving coil assembly is surrounded by a permanent magnet which produces a radial magnetic field. Current passed through the coil will result in a force which moves the coil against the spring force to a position which, by a pointer on a scale, will read current or voltage.

ships machinery spaces
container ships machinery info
The instrument is directional and must therefore be correctly connected in the circuit. As a result of the directional nature of alternating current it cannot be measured directly with this instrument, but the use of a rectifying circuit will overcome this problem.

Moving coil meter

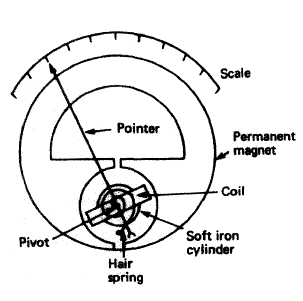

Fig:Moving coil meter
