Electrical and Mechanical Tachometers for use in Marine Machinery Spaces

A number of speed measuring devices are in use utilising either mechanical or electrical principles in their operation.

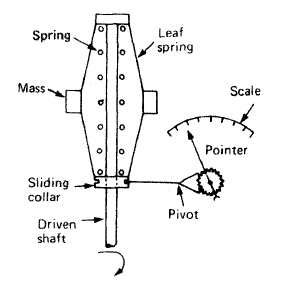

Mechanical Tachometers: A simple portable device uses the governor principle to obtain a measurement of speed. Two masses are fixed on leaf springs which are fastened to the driven shaft at one end and a sliding collar at the other (Figure below). The sliding collar, through a link mechanism, moves a pointer over a scale. As the driven shaft increases in speed the weights move out under centrifugal force, causing an axial movement of the sliding collar. This in turn moves the pointer to give a reading of speed.

ships machinery spaces
container ships machinery info
Electrical Tachometers

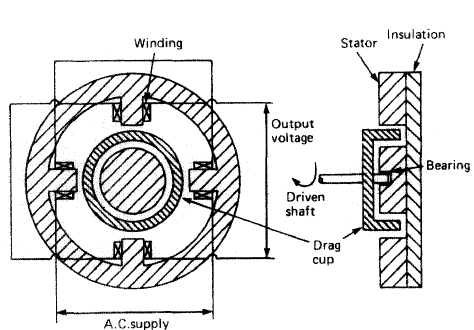

The drag cup generator device uses an aluminium cup which is rotated in a laminated iron electromagnet stator (Figure below). The stator has two separate windings at right angles to eaeh other. An a.c. supply is provided to one winding and eddy currents are set up in the rotating aluminium cup. This results in an induced e.m.f. in the other stator winding which is proportional to the speed of rotation. The output voltage is measured on a voltmeter calibrated to read in units of speed.

mechnical tachometer
Fig: Drag cup generator type tachometer

Drag cup generator type tachometer
Fig: Drag cup generator type tachometer

Tachogenerators provide a voltage value which is proportional to the speed and may be a.c. or d.c. instruments. The d.c. tachogenerator is a small d.c, generator with a permanent field. The output voltage is proportional to speed and may be measured on a voltmeter calibrated in units of speed. The a.c. tachogenerator is a small brushless alternator with a rotating multi-pole permanent magnet. The output voltage is again measured by a voltmeter although the varying frequency will affect the accuracy of this instrument.

pickup tachometer

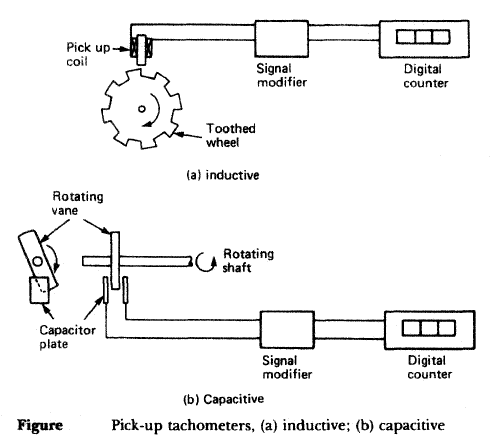

Fig: Pickup tachometer

Various pick-up devices can be used in conjunction with a digital counter to give a direct reading of speed. An inductive pick-up tachometer is shown in Figure (a). As the individual teeth pass the coil they induce an e.m.f. pulse which is appropriately modified and then fed to a digital counter. A capacitive pick-up tachometer is shown in Figure (b). As the rotating vane passes between the plates a capacitance change occurs in the form of a pulse. This is modified and then fed to the digital counter.
