Float Operated, Sight or Gauge Glasses & Pneumatic Gauges for Liquid Level Measurement

Shipboard machinery must operate within certain desired parameters. Instrumentation enables the parameters—liquid flow level,quantity,velocity and so on—to be measured or displayed against a scale.

Float operated: A float is usually a hollow ball or cylinder whose movement as the liquid surface rises or falls is transmitted to an indicator. A chain or wire usually provides the linkage to the indicator. Float switches may be used for high or low indication, pump starting, etc., where electrical contacts are made or broken, depending upon the liquid level.

ships machinery spaces
container ships machinery info

Sight or gauge glasses

Various types of sightglass are used to display liquid level in storage tanks. The simple boiler gauge glass referred to in Chapter 4 is typical of such devices.

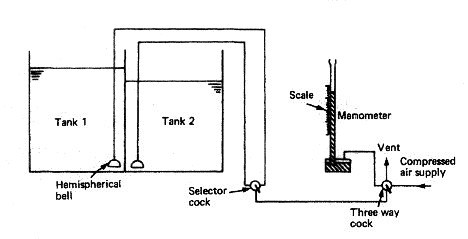

Pneumatic gaugeFig: Pneumatic Gauge


Pneumatic gauge

This is a device which uses a mercury manometer in conjunction with a hemispherical bell and piping to measure tank level. The arrangement is shown in Figure. A hemispherical bell is fitted near the bottom of the tank and connected by small bore piping to the mercury manometer. A selector cock enables one manometer to be connected to a number of tanks, usually a pair.

A three-way cock is fitted to air, gauge and vent positions. With the cock at the 'air' position the system is filled with compressed air. The cock is then turned to 'gauge' when the tank contents will further pressurise the air in the system and a reading will be given on the manometer which corresponds to the liquid level. The cock is turned to Vent' after the reading has been taken.
