Ships battery maintenance guidance
Various means of ships battery servicing
Battery are frequently used
to provide a low-voltage d.c. supply to certain
equipment onboard. To provide these services the appropriate size and type of
battery must be used and should be regularly serviced. Two main types
of battery are used on board ship: the lead—acid and the alkaline type,
together with various circuits and control gear.
To be available when required batteries must be maintained in a fully
charged condition. Where lead—acid batteries are used this can be
achieved by a constant trickle charge. Otherwise, for both types of
battery, a regular charge-up is necessary.
A measure of the state of charge can be obtained by using a
hydrometer. This is a device for measuring the specific gravity of a
liquid. A syringe-type hydrometer is shown in Figure above. A sample of
electrolyte is taken from each cell in turn and its specific gravity is
measured by reading the float level. All specific gravity values for the
individual cells in a battery should read much the same.
gravity reading can be related to the state of charge of the battery. The
specific gravity reading must be corrected for the temperature of the
electrolyte. The value for a fully charged lead-acid battery is 1.280 at
15°C. For an alkaline battery the specific gravity does not alter much
during charge and discharge but gradually falls over a long period:
when a value of 1.160 is reached it should be replaced.

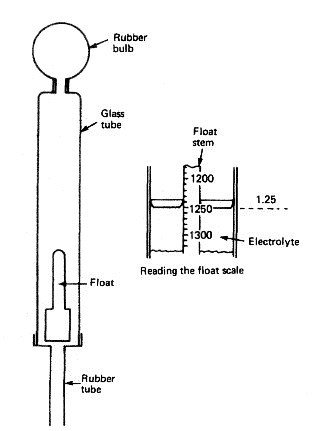

Fig:Syringe type hydrometer
The electrolyte level should be maintained just above the top of the
plates. Any liquid loss due to evaporation or chemical action should be
replaced with distilled water. Only in an emergency should other water
be used. It is not usual to add electrolyte to batteries.
A battery must be kept clean and dry. If dirt deposits build up or spilt
electrolyte remains on the casing, stray currents may flow and discharge
the battery. Corrosion of the casing could also occur. The battery
terminals should be kept clean and smeared with a petroleum jelly. The
small vents in the cell caps should be clear at all times.
Cell voltage readings are useful if taken while the battery is
discharging. All cells should give about the same voltage reading, This
test method is of particular value with alkaline batteries, where specific
gravity readings for the electrolyte do not indicate the state of charge.
