Various Heat exchanger maintenance guideline

All heat exchangers are to be kept in a clean condition so that heat transfer is not impeded. In heat exchangers, where sea water is the cooling medium, care is to be taken to see that dirt or sea growth does not cause any restriction of water flow as this may give rise to erosion taking place due to what is known as bubble impingement. Anti-corrosion devices must also be fitted in such a manner that they do not impede flow.



Many cases of erosion in tubes, tube plates and covers have come about through circulating heat exchangers with pumps of too large a capacity, the effect is that very high velocities are required to pass the water handled by the pump, these high velocities bring about other factors which cause erosion and wastage. A common case where this occurs is with refrigerating condensers and is due to circulating them with a pump of large capacity such as a ballast pump or general service pump.



Failures of both tube and plate heat exchangers/coolers are usually due to corrosion/erosion caused by material failure through fatigue, turbulence or fouling. If this occurs, and oil enters the water side, it will result in a pollution incident with the discharge of oil overboard. These types of failures can be prevented through regular inspections, tests and monitoring of the cooler’s performance (i.e. temperature changes, flow rates and pressure).

The following jobs MUST be included in the PMP/PMS for all oil coolers that have direct overboard seawater cooling as the medium.
  1. Anodes are to be inspected every three (3) months and renewed if more than 40% consumed;
  2. Coolers are to be opened for inspection every 6 months. This is to be discussed and agreed with your Fleet Superintendent as the interval may be significantly less where experience and trading pattern (i.e.shallow river waters) has found that coolers have to be cleaned at shorter periods due to heavyfouling;
  3. All Lubricating Oil system coolers with direct Sea Water overboard are to be pressure tested to 1.5 times the normal operating pressure at intervals of:

    a. 12 months for Coolers <20 years in age
    b. 6 months for Coolers >20 years in age
    For coolers >10 years of age with no record of any pressure tests, this must be completed as soon as possible, in consultation with your Fleet Superintendent.

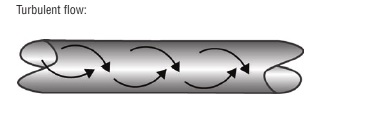

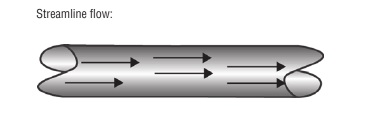

Note: For tube type coolers, particular attention should be paid to the internal condition of the tubes in way of the inlet end where turbulent flow can cause pitting of the tube leading to early failure. Should there be any indication of pitting, the pressure test interval should be reduced to 6 months.

In the case of a tube type cooler, tubes can be plugged if found to be leaking, however if more than 10% are plugged, the decrease in cooling performance may have an effect on the full load carrying capacity of the plant or system in question. Where tubes are plugged in a cooler it should be carefully monitored and scheduled repairs arranged for the next docking period.
