Engine Indicator & Power Measurement for Marine Diesel Engine

There are two possible measurements of engine power: the indicated power and the shaft power. The indicated power is the power developed within the engine cylinder and can be measured by an engine indicator. The shaft power is the power available at the output shaft of the engine and can be measured using a torsionmeter or with a brake.

ships machinery spaces
container ships machinery info

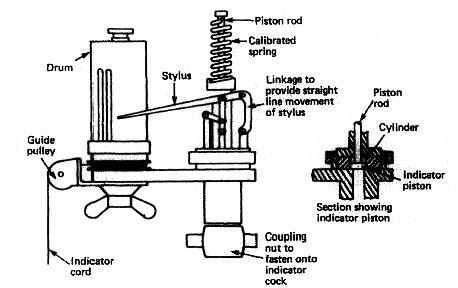

An engine indicator is shown in Figure below . It is made up of a small piston of known size which operates in a cylinder against a specially calibrated spring. A magnifying linkage transfers the piston movement to a drum on which is mounted a piece of paper or card. The drum oscillates (moves backwards and forwards) under the pull of the cord. The cord is moved by a reciprocating (up and down) mechanism which is proportional to the engine piston movement in the cylinder.

The stylus draws out an indicator diagram which represents the gas pressure on the engine piston at different points of the stroke, and the area of the indicator diagram produced represents the power developed in the particular cylinder. The cylinder power can be measured if the scaling factors, spring calibration and some basic engine details are known. The cylinder power values are compared, and for balanced loading should all be the same. Adjustments may then be made to the fuel supply in order to balance the cylinder loads.


Engine indicator


Torsionmeter

If the torque transmitted by a shaft is known, together with the angular velocity, then the power can be measured, i.e. shaft power = torque x angular velocity.
The torque on a shaft can be found by measuring the shear stress or angle of twist with a torsionmeter.
